Features:
- CCD megapixel 16:9 sensor
- AF(Auto Focus) camera
- HDV and SDV video out simultaneously
- Optical Zoom RatioX20 /Digital Zoom RatioX10
- Mutil-Format Video out from 1080p to NTSC/PAL
- IR-cut removable control
- BLC/D-WDR/MIRROR/FLIP/
- White Balance -ATW/AWB/R-Y/R-B
- OSD
- Video I/F LVDS(YUV422)/HD-SDI/CVBS video out
- System Spec
- OSD Manual
- Module
- Download

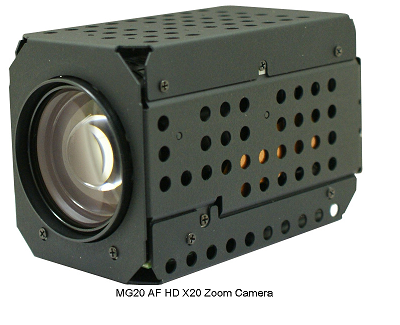

| SERIES NAME. | MG20/ CCD Megapixel AF Zoom CAMERA HD-SDI/CVBS |
| IMAGE SENSOR | 1/3-inch Megapixel CCD Sensor (Ex-View) |
| TOTAL PIXELS | 1348(H) x 746(V) (16:9) approx. 1M pixel |
| PIXEL SIZE | 4.08µX4.08 µ |
| SCANNING SYSTEM | Progressive scan |
| MINIMUM ILLUMINATION | 0.05 Lux@25 IRE,AGC On , F 1.8, IR Cut |
| RESOLUTION | 800 TV Lines above |
| AF ZOOM LENS | F No. :Wide : F 1.6 , Tele : F 3.5 Zoom: Optical Zoom 1~20 times: Stepping motor/Digital Zoom 1~10 times (Optical + Digital Zoom total : 100 times) VIEW ANGLE: Wide 67.5 °/59.9 °/34.7 ° ; Tele 3.6 °/3.1 °/1.8 Auto Focus: Focus range 15cm ~ ∞ at Wide side at Tele side : 1.0m ~ ∞ |
| HDV VIDEO OUTPUT | I/F : HD-SDI and LVDS Video format:720P@60/50/30/25,1080p@ 30/25,1080i,@ 60/50 |
| SDV VIDEO OUT PUT | CVBS NTSC/PAL |
| S / N RATIO | 52DB (STD) (AGC on ,Weight on ) |
| NOISE REDUCTION | 2D&3D Noise Reduction (3D: Off/Low/Mid/High) |
| GAMMA CORRECTION | 0.45 (CRT Display) / 0.65 (LCD Display) / 1.0 (STD) |
| AUTO EXPOSURE | Auto , Fix , IRIS priority 1/30~1/120000(SEC) FOR NTSC, 1/25~1/120000(SEC) FOR PAL |
| WHITE BALANCE | ATW/AWB (ONE PUSH) |
| ELECTRICAL SHUTTER SPEED | On/Off, 8/1~1/10000s, 21 Steps |
| ALARM CONTROL | Off/On |
| POSITION SAVE | 64 Positions(IRIS HOLD/WB HOLD/ZOOM/FOCUS/PRIVACY) |
| FUNCTION | Peak/ BLC/Fixed shutter/XDR(D-WDR) /AGC/ Fixed Gain/Slow shutter/3DNR Control/Day-night/Fog-Reduction / Eclipse/Enhance H-V/UV-Matrix/AWB /ATW/R-Y/B-Y/Freeze/Priority/Motion Detection/Digital P.T.Z /Posi-Negative/Privacy MASK/Cross line/Freeze/Com-ID |
| DAY /NIGHT FUNCTION | ICR(IR-CUT Mechanical DAY /NIGHT) |
| COMMUNICATION | RS-485/232 Pelco or Original |
| OPERATION TEMPERATURE | -10℃ To 50℃ |
| OPERATION HUMIDITY | Within 80﹪RH |
| POWER SUPPLY | DC12V±1V / 280mA |
| Luminance Menu1/4 | ||
| ALC | Off/On/FLC | ALC(Auto lighting control) level control, with FLC(flicker less) function |
| AES | Off/On | AES(Auto exposure shutter ) level control |
| FIXED SHUTTER | Off/On | 1/30(1/25),1/50(1/60),1/100,1/120,1/180,1/350, 1/500.1/750,1/1000,1/2000,1/4000,1/10000. |
| PEAK AVERAGE | Off/On | Adjust image PEAK ratio, for highlight suppression |
| BACK LIGHT | Off/On | Brightness compensation for dark area |
| XDR | OFF/LOW/Middle/HIGH | Digital WDR function which is based on adaptive tone mapping. |
| GAMMA | CRT/LCD/1.00 | Gamma correction function |
| Luminance Menu2/4 | ||
| AGC | AUTO/FIX | Electronic sensitivity compensation which can amplify to enhance low video signal up to 36dB |
| SLOW SHUTTER | OFF/LIMIT TIME | Electronic sensitivity compensation which be by frame accumulation tech. |
| DNR | OFF/LOW/Middle/HIGH | To reduce random image noise |
| DAY / NIGHT | DAY/NIGHT/COMPUL | ICR-SET, Control mode: auto or by External controlmode |
| FOG REDUCTION | OFF/LOW/Middle/HIGH | To enhance the low contrast image such as snow, fog, haze |
| ECLIPSE | OFF/LOW/Middle/HIGH | To block the area which is saturation of lighting in the image. |
| ENHANCE | HDV/SDV | Both HD(high definition)Video and SD(standard definition)video can be adjusted by Horizontal and Vertical |
| Color Menu3/4 | ||
| COLOR MODE | MONO/OFF/ON/AUTO | Be changeable from color to B/W automatically or fixed in color |
| WHITE BALANCE | ATW/AWB | Auto tracing white balance and auto while balance –one push |
| UV MATRIX | U-MATRIX/V-MATRIX | U or V- axis, R/G/B color adjustable. |
| COLOR GAIN | GAIN CONTROL | Color gain adjustable. |
| COLOR TONE | R-Y/B-Y | Color vector adjustable. |
| Setup Menu4/4 | |||
| LANGUAGE | ENGLISH/JAPANESE/CHINESE(TRADITIONAL/SIMPLIFIED) | ||
| TITLE | OFF/ON | TITLE can be set with display. | |
| DEFAULT | LOAD/SAVE/FACTORY |
OSD parameter setting load or saving | |
| SPECIAL FUNCTION | SPECIAL FUNCTION (1/3) | CAMERA POSITION | Max:64 preset position, which have IRIS, WB, Zoom Ratio, Focus and Privacy |
| ZOOM | Wide/Tele position setting, Digital Zoom PAN/ TILT setting | ||
| FOCUS | Auto/Manual/Speed focus parameter | ||
| PRVACY MASK | Image masking Max:16 areas and area size adjustable | ||
| ALARM | Supports 3 modes MD, Port and MD and Port; image freeze | ||
| POWER ON | While initial power , Focus and Zoom defaul setting of position | ||
| SPECIAL FUNCTION (2/3) | PRIORITY | Priority selectable, AGC first or SLOW SHUTTER first. | |
| MOTION DETECT | Motion detection is on or off | ||
| DIGITAL ZOOM | Zoom ration selectable, and Pan / tile movable | ||
| H / V REVERSE | Mirror and flip | ||
| DISPLAY MODE | HD video format: 720p25/30/50/60;1080p25/30; 1080/50/60 selectable SD video format: 4:3/16:9 Image aspect : Nor.(16:9) or Full(4:3) | ||
| DIGITAL OUT | YUV422 format Spec. setting | ||
| CROSS LINE | displays crosslink with moves by V or H axis | ||
| IRIS SPEED | Adjust IRIS speed | ||
| SPECIAL FUNCTION (3/3) | FREEZE | Image freeze | |
| COLOR BAR | display color bar | ||
| POSI / NEGA | Show positive image or negative | ||
| OSD | Display on/off zoom ratio, motion status, title | ||
| SERIAL COMMUNCATION | Set camera ID number, baud rate and Original or Pelco-D protocol | ||
Pin definition
| MAIN BOARD | |||||||||
| JP1 (Digital Video Output (LVDS Out Put)) | JP2(POWER & VBS OUT) | JP3 (OSD CONTROL) | |||||||
| 1 | TX OUT3+ | 11 | GND IN | 21 | GND IN | 1 | +12V IN | 1 | ENTER |
| 2 | TX OUT3- | 12 | TX D | 22 | GND IN | 2 | GND IN | 2 | RIGHT |
| 3 | TX CLK OUT+ | 13 | RX D | 23 | GND IN | 3 | VBS | 3 | LEFT |
| 4 | TX CLK OUT- | 14 | T12DC IN | 24 | GND IN | 4 | GND IN | 4 | UP |
| 5 | TX OUT2+ | 15 | T12DC IN | 25 | RTT | 5 | IR VONT | 5 | DOWN |
| 6 | TX OUT2- | 16 | T12DC IN | 26 | RESET | 6 | GND IN | 6 | GND in |
| 7 | TX OUT1+ | 17 | T12DC IN | 27 | VBS | ||||
| 8 | TX OUT1- | 18 | T12DC IN | 28 | MDOA | ||||
| 9 | TX OUT0+ | 19 | GND IN | 29 | IR CONT A | ||||
| 10 | TX OUT0- | 20 | GND IN | 30 | 485EN A | ||||
| MAIN BOARD Pin definition | |||||||||
| JP4 (RS-485 I/F) | JP6 (Flash memory data input) | JP8 (AYU1-1P-02676-120/JST) | JP9 (BM08B-SRSS-TL (LN)(SN)/JST) | ||||||
| 1 | GND in | 1 | F-RST | 1 | TX-SDI | 1 | GND in | 7 | IRIS- |
| 2 | TX2 | 2 | F-CS | 2 | GND IN | 2 | TELE | 8 | GND in |
| 3 | RX2 | 3 | F-CLK | 3 | WIDE | ||||
| 4 | +3.3V | 4 | F-DI | 4 | NEAR | ||||
| 5 | 485 EN | 5 | F-DO | 5 | INF | ||||
| 6 | GND | 6 | IRIS+ | ||||||
Dimension(Unit : mm / ± 0.5 mm)
