HD Coax-link System

• What’s HD (high definition) Coax-link?

• HD Coaxial-link Advantages:

• HD Coaxial-link Products :

  • HD Coaxial-link Camera
  • HD Coaxial-link Receiver

• HD Transmission Application Diagram

  • HD Coaxial-link Camera Soultion
  • HD External Coaxial-link Solution
  • HD-SDI camera –Traditional Transmission Concept

What’s HD (high definition) Coax-link?

MINTRON HD(high definition) Coaxial-link designed is for High -vision video and simplifying wiring structure application that can offer real-time and Un-compressed broadcasting video quality, up to 1080p resolution and comply with SMTPE 292 , in additional, it also supports one cable transmission that all single of HD video, digital audio, Control and power are sent over same cable,
This can be used in application fields where image quality and resolution are paramount, such as HD CCTV, machine vision, medical/equipment inspection, and microscope.

back to top

HD Coaxial-link Advantages:

• Advanced HD-SDI technology

• Supports video format: 720p/1080i/1080p, and comply with the SMPTE 292M Standard

• Supports embedded digital audio

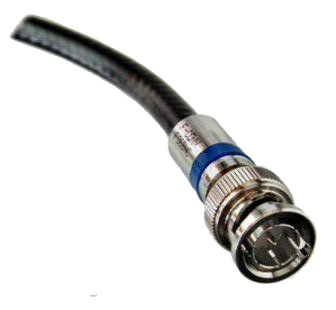

• Over existing RG-59G Coaxial cable

• Support Power over Cable

• Support auxiliary data (bi/Unidirectional) for camera remote control

• Provides all of HD video, digital audio, Ctrl (RS-232/RS-485), Power over same cable

• Data Transmitting distance up to 100 meters without repeater

back to top

HD Coaxial-link Products :

the HD Coaxial link solution includes HD Coaxial-link camera, HD Coaxial-link repeater, and HD Coaxial-link receiver, transmission distance can be up to 100 meter every repeater.

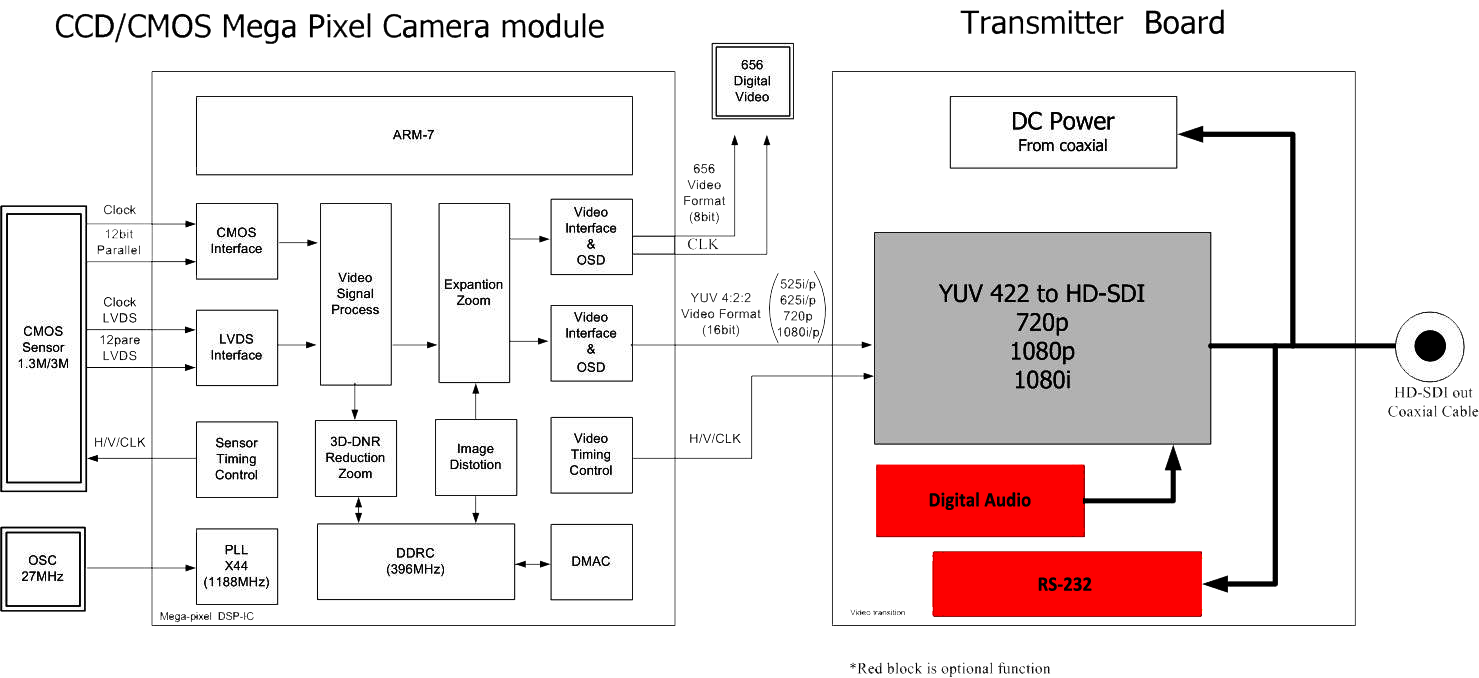

HD Coaxial-link camera

For HD Coaxial-link camera function, Our all of HD camera series are possible to equippe HD coaxial-link transmitter which allows video, auido, Ctrl and power passing on one cable

back to top

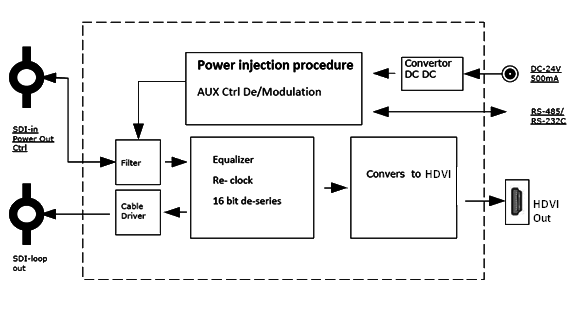

HD Coaxial-link receiver

The HD Coaxial-link receiver accepts HD‐SDI signal and transforms it into HDVI (optional function) and HD-SDI loop ‐out. In additional, this HD‐SDI in‐put (BNC) interface allows transiting both DC power and bi‐directional code to be carried over same cable. It is possible to implement all of signal over single‐wire coax.

back to top

HD Transmission Application Diagram

This is HD-SDI application for requiring HD-video, control camera and remote power as following

• HD Coaxial-link camera solution

• HD External Coaxial-link solution

• HD camera –Traditional transmission concept

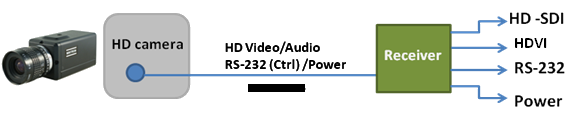

HD Coaxial-link Camera soultion

This is designed for one cable application. the HD camera inside is built-in a HD coaxial link transmitter which is allows transmitting HD-video, digital audio, Ctrl(RS-232), and get Power by one coaxial cable simultaneously, no need any extra cable, the receiver device can receive the HD Coaxial cable from camera , and it able to eventually output signal by HD-SDI or HDVI, and RS-232 and send the power to camera

back to top

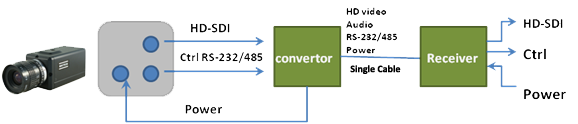

HD External Coaxial-link solutionHDVI

This is designed for one cable application. it is consist of convertor and receiver , the convertor can receive HD-SDI signal, RS-232 and convert it in to same coaxial cable as well as provide power supply to camera, and needed one coaxial cable only which is for connecting the convertor and receiver .

back to top

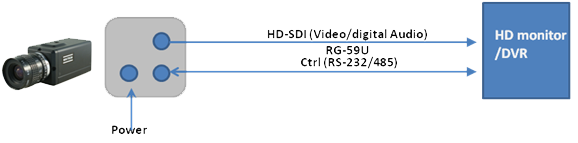

HD-SDI camera –Traditional transmission concept

There are 3 wires from camera to receiver side, RG-59U cable (coaxial cable) is for HD-SDI signal, twist Pair is for Ctrl(RS-232/485 signal), Power line is for camera power

back to top
