Features:
- HD 720p HD-SDI CCTV camera
- HDV and SDV video out simultaneously
- Day and Night-IR-cut removable control
- AES/ALC/BLC
- MIRROR/FLIP/Eclipse/XDR
- White Balance -ATW/AWB/R-Y/R-B
- OSD
- Support HDV-I/F out
HD-SDI
YUV422(BT.1120) application
Optic-Fiber out SMPTE 297
HDVI(hight definition multi-media interface)
HD-SDI Coax-link
- System Spec
- OSD Manual
- Module
- C/CS Box type

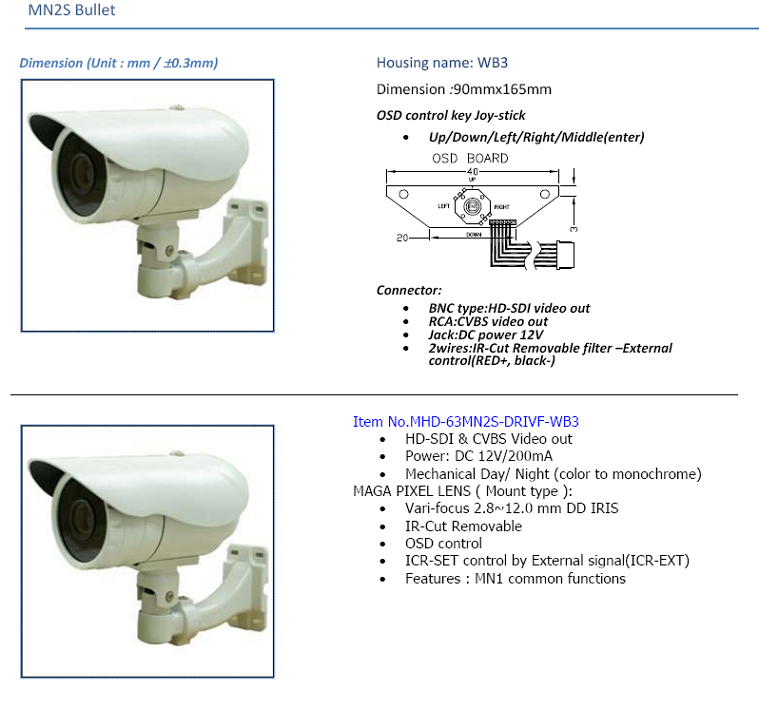

- Bullet

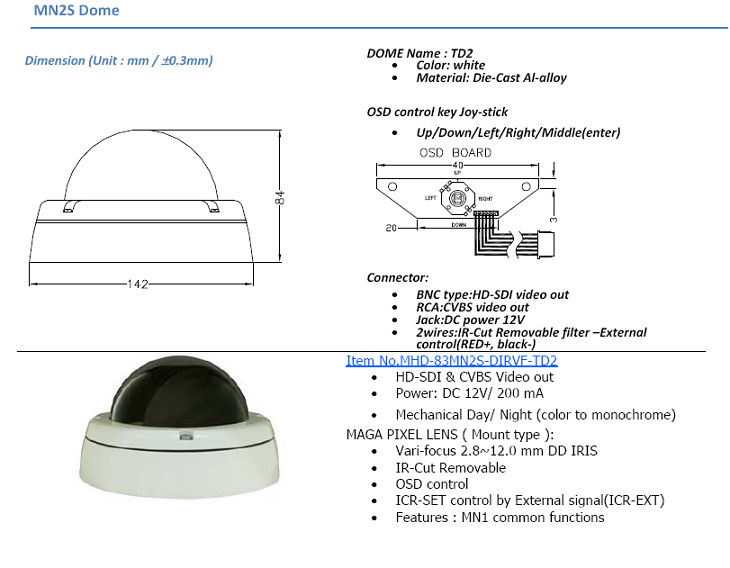

- DOME
- Download
| SERIES NAME. | MN2S/ MEGA 720p HD-SDI/CVBS CAMERA |
| IMAGE SENSOR | 1/3” Megapixel CMOS Sensor (Rolling shutter) |
| TOTAL PIXELS | 1280(H) X 1024(V) approx. 1.3M pixel |
| EFFECTIVE PIXELS | 1280(H) X720(V) |
| SCANNING SYSTEM | Progressive scan |
| SYNC SYSTEM | Internal |
| MINIMUM ILLUMINATION | 0.05 Lux @ AGC on /Sens-up off/ F1.2 |
| RESOLUTION | Over 800 TV-Line |
| ICR-Set CONTROL | Auto, Ext-Control |
| GAIN CONTROL | Auto |
| EXPOSURE CONTROL | Auto, Manual, IRIS priority |
| S / N RATIO | 48dB (TYP) (Gamma, Aperture, AGC OFF) |
| AUTO IRIS | AES / ALC-DC lens |
| VIDEO FORMATOUT | 720p 50/60Hz |
| DNR control | Off/Low/Middle/High |
| DIGITAL VIDEO OUT(HDV) | HD-SDI(without cable driver) & YUV:422(optional) |
| ANALOG VIDEO OUT(SDV) | CVBS |
| GAMMA CORRECTION | 0.45 / 0.5 / 0.55 / 0.6 / 0.65 |
| DIGITAL ZOOM | 1.0~8.0 |
| PROTOCOL | RS-485(Optional function) |
| FUNCTIONS | Brightness/sens-up/Level(hlc)/BLC/WDR/auto/auto Ect./ XDR/shading/privacy/motion/sd-cBcr/hd-cbcr/yuv |
| OPERATION TEMPERATURE | -20℃ TO 50℃ |
| OPERATIONAL HUMIDITY | within 85﹪RH |
| POWER SUPPLY | DC12V±1V / 200MA |
| MainManu | functions | Parameter | Remark | ||
| LENS | ALC | INDOOR/OUTDOOR | |||
| ELC | |||||
| EXPOSURE | BRIGHTNESS | |-----l-----| 10 | |||
| SHUTTER |
|
||||
| SENS-UP | OFF/X2/X3/X4 | ||||
| AGC | |-----l-----| 10 | ||||
| BACKLIGHT | OFF | ||||
| ESCPLES | |-----l-----| 10 | ||||
| BLC | H/V-POS 5 (0~20) | ||||
| H/V-SIZE 5 (0~20) | |||||
| DAY&NIGHT | MODE | AUTO/COLOR/B&W/EXTERN | |||
| IR LED | YES/NO | ||||
| SMART IR | ON/OFF | ||||
| EXTERN S/W | HIGH/LOW | ||||
| AGC THRES | |-----l-----| 10 | ||||
| MARGIN | |-----l-----| 10 | ||||
| DELAY | LOW/MIDDLE/HIGH | ||||
| WHITE BAL | AUTO | ||||
| AUTO EXT. | |||||
| PRESET | One-pushing | ||||
| MENU | R-GAIN|-----l-----| 10 | ||||
| B-GAIN|-----l-----| 10 | |||||
| DNR | HIGHT/MIDDLE/LOW/OFF | ||||
| IMAGE | SHARPNESS | |-----l-----| 10 | |||
| GAMMA | 0.45/0.5/0.55/0.6/0.65 | ||||
| COLOR GAIN | |-----l-----| 10 | ||||
| MIRROR | ON/OFF | ||||
| FLIP | ON/OFF | ||||
| D-ZOOM | 1.0~8.0 | ||||
| D-WDR | OFF/LOW/MIDDLE/HIGH | ||||
| SHADING |
|
||||
| WEIGHT | |||||
| PRIVACY |
|
||||
| ZONE NUM | |||||
| ZONE DISP | |||||
| H-POS | |||||
| V-POS | |||||
| H-SIZE | |||||
| V-SIZE | |||||
| Y LEVEL | |||||
| CR LEVEL | |||||
| CB LEVEL | |||||
| MOTION | SENSITIVITY | |-----l-----| 10 | |||
| DET H-POS | 5 (0~20) | ||||
| DET V-POS | 5 (0~20) | ||||
| DET H-SIZE | 2 (0~20) | ||||
| DET V-SIZE | 2 (0~20) | ||||
| MOTION OSD | ON/OFF | ||||
| ALARM | ON/OFF | ||||
| SYSTEM | COMMUNICATION | (Optinal function) | |||
| CAM ID | |||||
| BAUDRATE 2400/4800/9600/57600/115200 | |||||
| PROTOCOL PELCO-P | |||||
| IMANGE RANGE | FULL/COMP | ||||
| Output FORMAT | 720P | ||||
| Color Space | SD-CbCr/HD-CbCr/YUV | ||||
| FRAME RATE | 30P/25P | ||||
| CVBS | NTSC/PAL | ||||
| RESET | ON(Push) | ||||
| RETURN | |||||

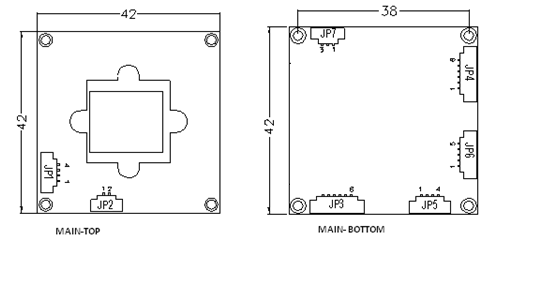

Dimension(Unit : mm / ± 0.5 mm)
| Main Top view | |||
| JP1 | JP2 | ||
| 1 | DUMP- | 1 | ICR_DRV1 |
| 2 | DUMP+ | 2 | ICR_DRV2 |
| 3 | DRIVE+ | ||
| 4 | DRIVE- | ||
| Main Bottom View | |||||||||
| JP3 | JP4 | JP5 | JP6 | JP7 | |||||
| 1 | +12V in | 1 | ENTER | 1 | GND | 1 | SDI-P | ||
| 2 | GND | 2 | RIGHT | 2 | TX | 2 | SDI-M | ||
| 3 | VBS | 3 | LEFT | 3 | RX | 3 | A GND | ||
| 4 | GND | 4 | UP | 4 | +3.3V | ||||
| 5 | ICR_TRG | 5 | DOWN | 5 | 485DE | ||||
| 6 | GND | ||||||||
Available HDV interface type as below:
- HD-SDI type
- HD-SDI Coax-link(Power, Ctrl and HD-video are over coaxial cable)
- Optical Fiber-out SMPTE 297
- HDVI(Hi-Defintion Multi-media Interface)

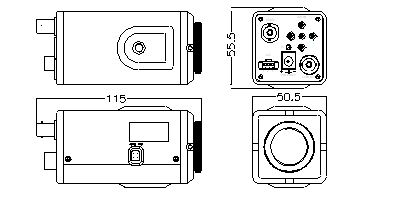

Dimension(Unit:mm):
